SCREW PILES

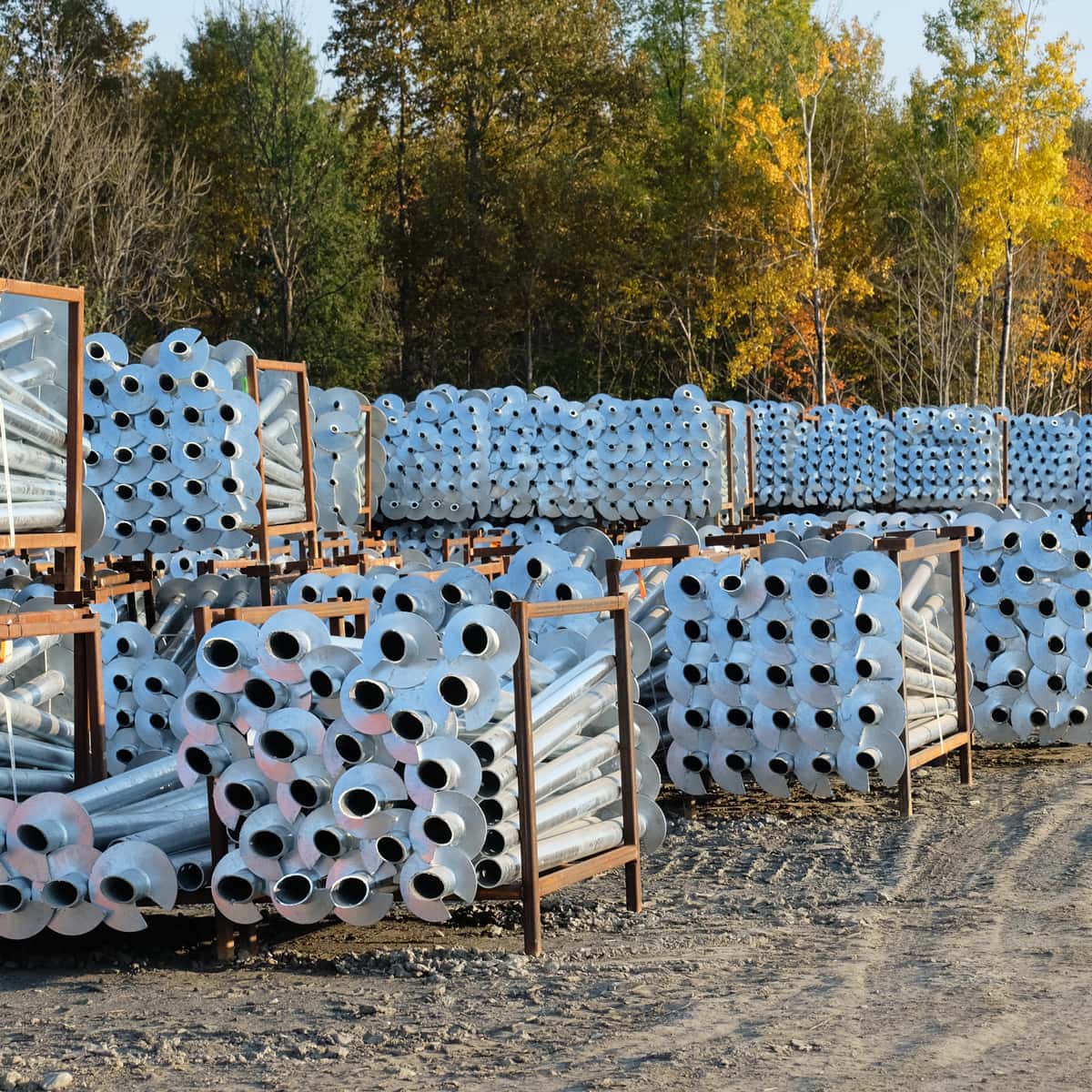

Techno Metal Post's screw piles, are installed by our trained and certified professionals, using specially designed hydraulic machines. The piles are augured in until they reach a specified torque and depth, allowing our installers to determine the load-bearing capacity for the structure. Helical pile foundations are made from Hollow Structural Steel (HHS) that is compliant with ASTM A500 grade C. They are designed, tested, fabricated, and installed in compliance with Canadian, European, and U.S. building codes. When compared to bolted couplings in similar products, TMP's fully welded couplings ranked above others and provided maximum strength, rigidity, and enhanced buckling resistance. Different shaft and helical blade sizes are available, to accommodate the needs of structure support and site soil conditions. Our engineering department provides assistance, to determine the appropriate sizes for specific project types.

We have designed and created a series of specialized hydraulic equipment, exclusively for the installation of helical pile foundations. A single machine compact in size, allows the crew to complete installations for even the toughest foundations and tightest spots. It is less disruptive to surrounding areas compared to traditional methods, as it does not require excavation, the use of heavy machines, or concrete pouring. Another added benefit is the minimal impact on your lawn and surrounding landscape, leaving behind only a small footprint. Both customers and installers alike, are highly satisfied with the ability to start construction on their project within a short period of time, even as little as within the same day. In the end, your project was efficient, tidy and cost-effective.

During the installation process, our exclusive polyethylene green sleeve is placed on the pile, to safeguard it against ground movement. In situations where there are freeze/thaw cycles or swelling clay, the sleeve is designed to glide along the pile shaft, adapting to any ground movements. Techno Metal Post’s helical pile foundation remains secure, thereby guaranteeing the stability of the entire structure.

To ensure the stability and security of any given structure, pile caps/support plates, are affixed to the top of each pile. Techno Metal Post offers a range of support plate models and sizes, to accommodate various dimensions or materials. Additionally, TMP manufactures different helical pile sizes, to suit different project requirements. Smaller piles are designed for lighter projects, such as decks and verandas, and larger piles for heavier loads and purposes, such as cottages, garages, and buildings.
